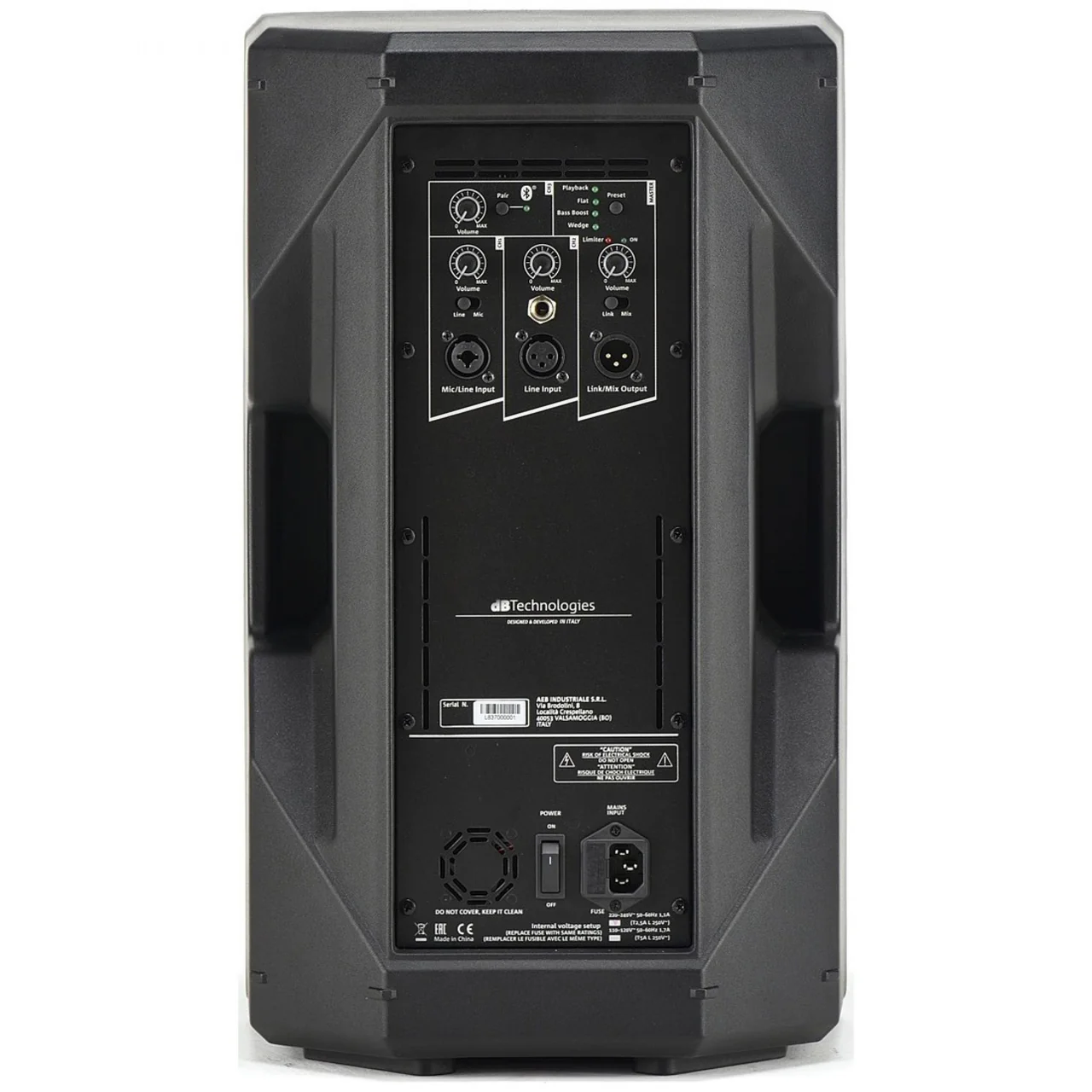

DB TECH KL10 GABINETE ACUSTICO 10″ AUTOAMPLIFICADO

Datos Técnicos
Speaker Type2-Way Active Speaker
Datos Acústicos
Frequency Response [-10dB]55 – 18.000 Hz
Max SPL125 dB
HF1″ CD, 1″v.c
LF10″, 2″ v.c.
Dispersión: 90°x60°
Crossover Frequency2000 Hz (24 dB/oct.)
Amplificador
Amp TechnologyClass D(LF)+Class AB (HF)
Power Peak (LF+HF)400 W

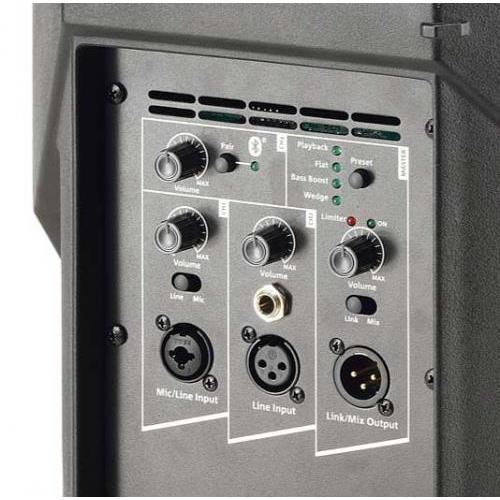

Procesador
Controls1xVolume, 1xslide switch mic/line
Indicadores: power on/signal/limiter LEDs
ControllerDSP 20/56 bit
AD/DA Converter24 bit/ 48 Hz
Presets: Playback, Flat, Bass Boost, Wedge
LimiterPeak, RMS, Thermal
Advanced DSP FunctionsLinear Phase FIR Filters
Sección de Entrada
Signal Input1x Combo(XLR/Jack)
Mic/Line
1xXLR/TRS
Bluetooth Input1xBluetooth receiver
SIGNAL Out1xXLR Male (LINK/MIX)
Mecánica
HousingPolypropylene
Handles3 (2 on side 1 on top)
Angles UpMonitor Use 40°
Pole Mount36 mm, double positioning
Width310 mm (12.2 in)
Height521 mm (20.51 in)
Depth292 mm (11.51 in)
Weight11.7 kg (25.79 lbs)
